3 way stainless steel ball valve 1370L 1/2'' + PE25

€393.34 (excl. btw)

Reliable rack and pinion pneumatic actuator (PE series). Features spring return, adjustable travel stops, and ISO 5211 mounting. Designed for durability with a minimum of 500,000 cycles. Ideal for industrial valve automation.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Other Download
Other Download

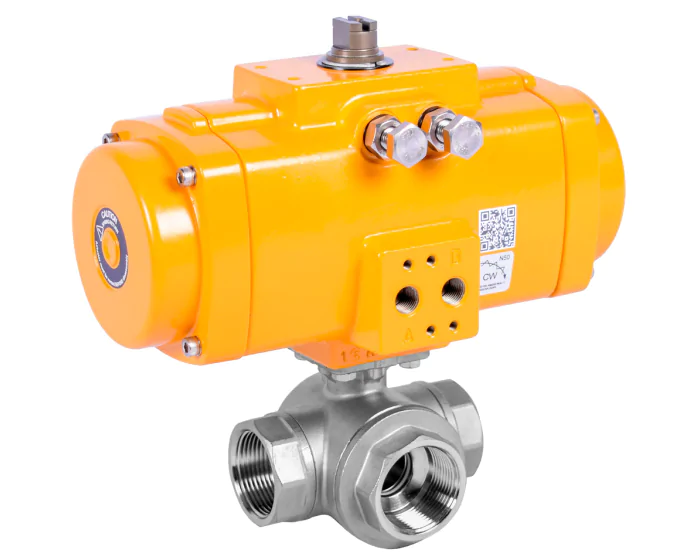

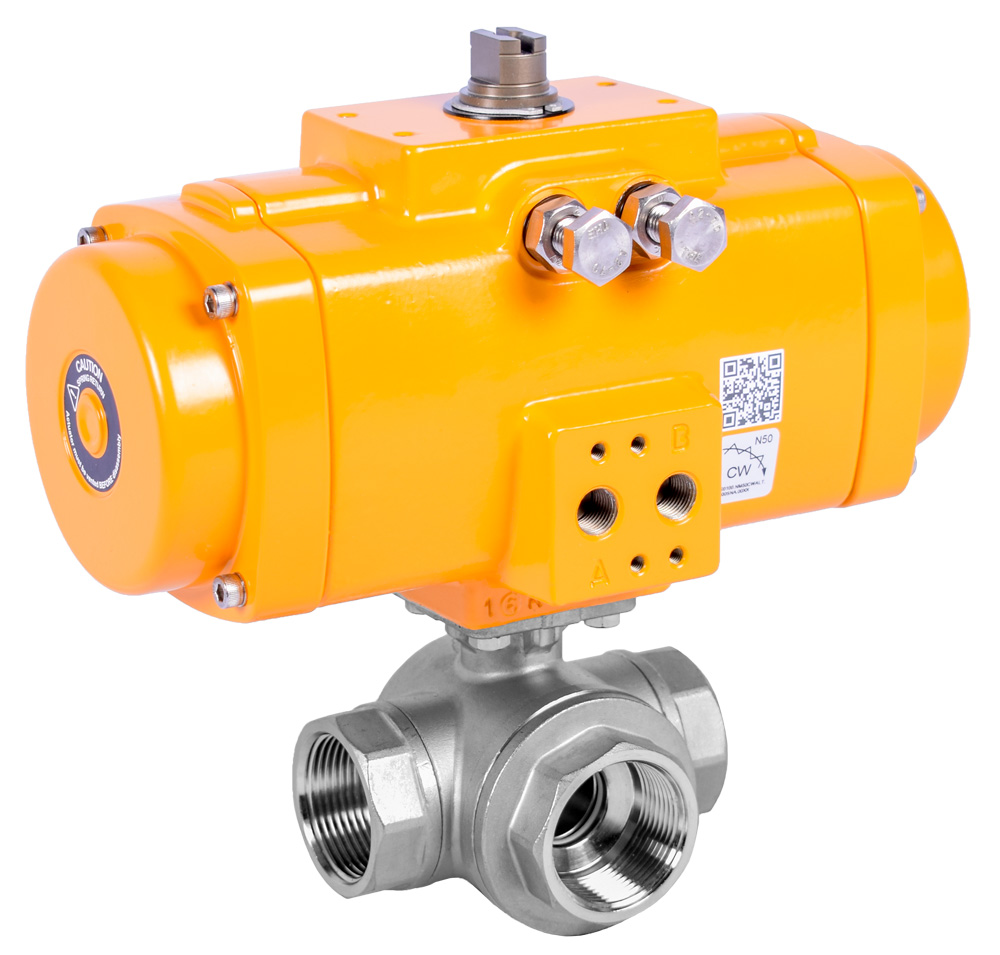

Three way ball valve with floating ball, reduced bore Body in stainless steel ASTM A351 Gr. CF8M Ball in stainless steel AISI 316 L-port Seats in PTFE + 15% glass fiber Max. working pressure: 69 bar (1/2'' to 11/4''), 55 bar (11/2'' to 2'') Connection: BSP threaded ISO mounting flange With pneumatic actuator spring return type PE, spring to close, air to open
Specification Value
DN inches NPS 1/2

If you have any questions about this product, please feel free to contact us.

Product Name Product Number EVAC Number Price Add to Cart
2092 1/2 1370LPE015 S1002041
€393.34 (excl. btw)
add to cart
2093 3/4 1370LPE020 S1002042
€639.19 (excl. btw)
add to cart
2094 1 1370LPE025 S1002043
€639.19 (excl. btw)
add to cart
2095 1 1/4 1370LPE032 S1002044
€666.03 (excl. btw)
add to cart
2096 1 1/2 1370LPE040 S1002045
€885.01 (excl. btw)
add to cart
2097 2 1370LPE050 S1002046
€1,007.94 (excl. btw)
add to cart
